How Is a Topographic Survey Conducted on a Construction Site?
In any construction project, the first step to ensure accuracy and efficiency is the topographic survey. This process provides vital information about the physical characteristics of the land, helps identify potential irregularities, and precisely defines reference points for the project.
Below, we explain how a topographic survey is carried out on-site and why it’s so important.
What Is a Topographic Survey?
A topographic survey is a technical study that collects data about the land, such as elevations, slopes, boundaries, existing structures, and natural features. Its main goal is to generate detailed maps and plans that serve as the foundation for planning and executing a civil engineering project.
Steps to Conduct a Topographic Survey on Site
1. Survey Planning
Before starting, the objective of the survey, the area to be studied, and the type of instruments to be used are defined. Existing site plans or prior data are reviewed if available.
2. Site Reconnaissance
A site visit is conducted to assess real conditions such as access points, obstacles, vegetation, existing buildings, and more. This helps anticipate challenges and determine the best measurement method.
3. Establishing Control Points
Stakes are placed at key locations on the land to serve as reference points during the survey. These must have accurate geographic coordinates.
4. Measurement and Data Collection

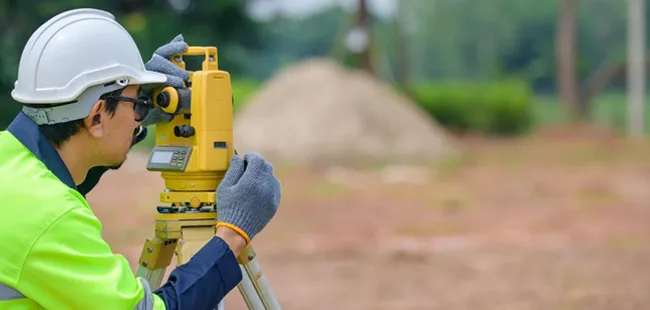

Using equipment such as total stations, optical levels, theodolites, or GPS-enabled drones, measurements of distances, angles, and elevations are taken. All data is recorded for further analysis.
5. Data Processing
Collected data is processed using specialized software (such as AutoCAD Civil 3D, TopoSurv, or Revit) to generate maps, contour lines, digital terrain models, and technical reports.
6. Delivery of Plans and Documentation
The final result is a set of topographic plans and documents that will guide the design, excavation, foundation, and other stages of the construction process.
Why Is a Topographic Survey Important?
- Prevents design errors due to lack of terrain knowledge.
- Improves accuracy in the construction of structures and property boundaries.
- Enhances planning for excavation, backfill, and drainage.
- Reduces costs and rework caused by on-site inaccuracies.
Conclusion
A topographic survey is a critical step that should never be overlooked. When properly executed, it ensures a well-planned, precise, and terrain-aligned project.
Investing in a professional survey from the beginning is essential for the success of any construction project.
